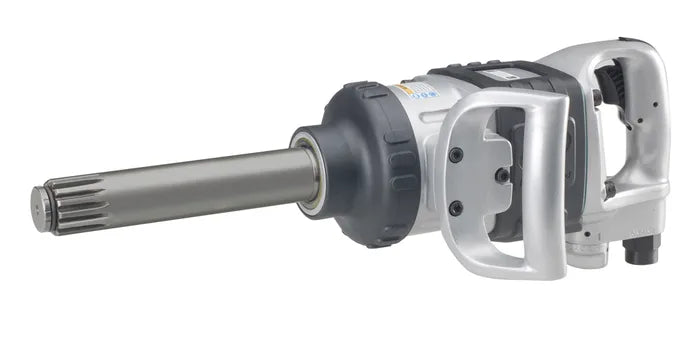

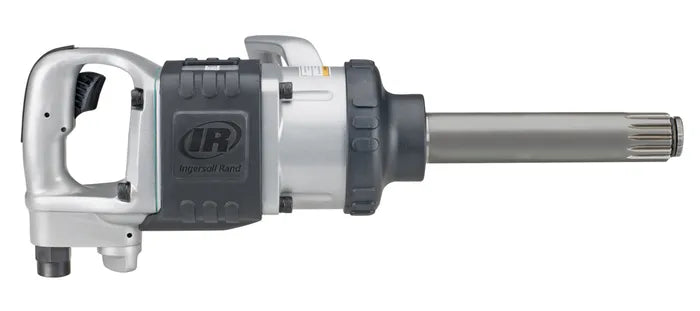

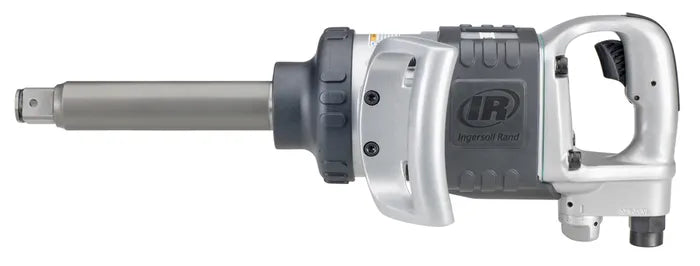

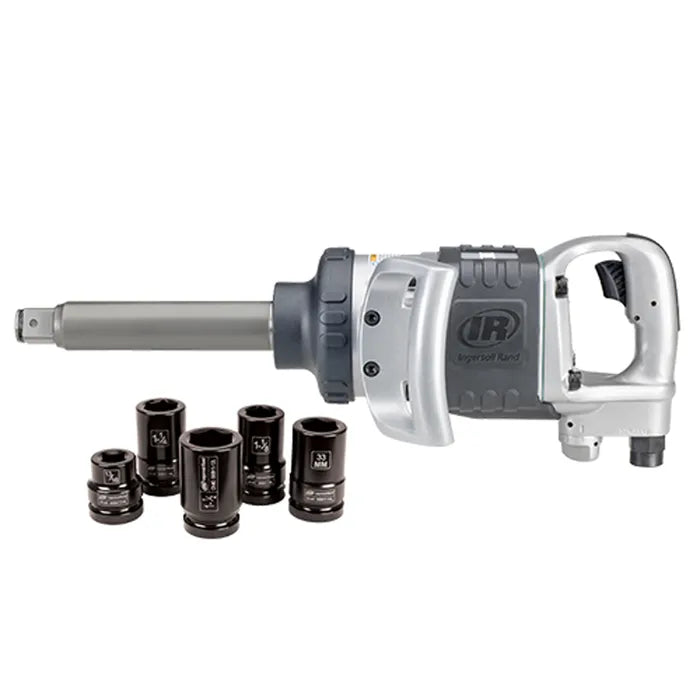

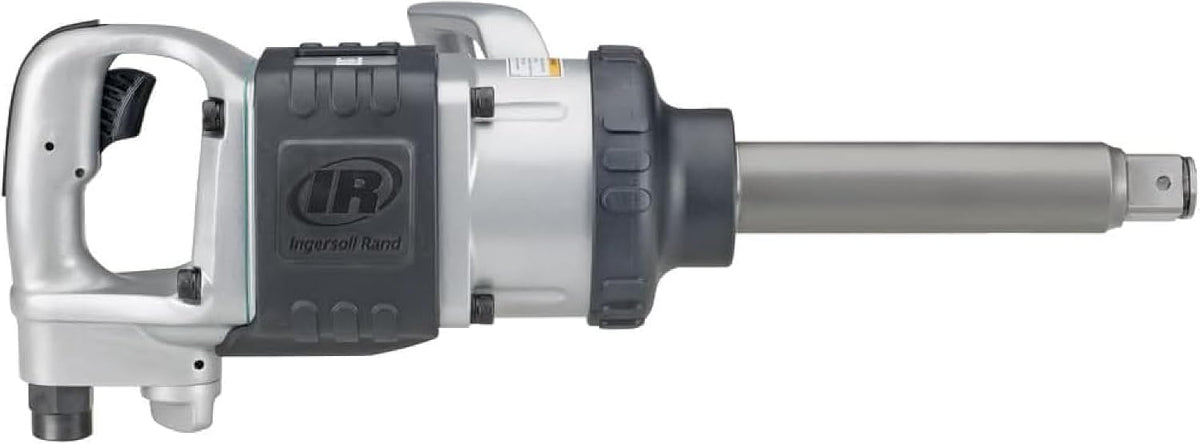

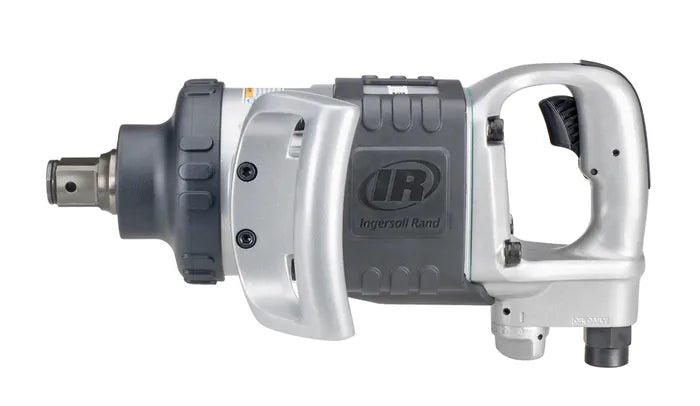

Ingersoll Rand 285B Series Impact Wrench

The Ingersoll Rand 285B-6 Heavy Duty Pneumatic Impact Wrench is a professional-grade, 1-inch drive air impact wrench designed for demanding automotive, commercial vehicle and industrial maintenance applications.

Delivering up to 2,000 Nm of torque at 6.2 bar, and a maximum of 2,400 Nm at 8.3 bar, the Ingersoll Rand 285B-6 provides exceptional power for loosening stubborn nuts, bolts and heavy-duty fasteners.

Featuring a 6-inch extended anvil, robust metal construction and ergonomic D-handle design, this professional pneumatic impact wrench combines high torque output with excellent accessibility, durability and operator control.

Key Features and Benefits

High-Torque Performance – Up to 2,400 Nm

The Ingersoll Rand 285B-6 delivers impressive fastening and loosening power for demanding professional applications.

With maximum torque of 2,000 Nm at 6.2 bar (90 PSI), increasing to 2,400 Nm at 8.3 bar (120 PSI), this heavy-duty pneumatic impact wrench is particularly suited to commercial vehicle servicing, industrial maintenance and other high-torque applications.

A three-position power regulator provides greater control of torque output in both forward and reverse operation.

Extended 6-Inch Anvil for Improved Accessibility

The 6-inch extended anvil provides additional reach when accessing recessed nuts, bolts and fasteners.

Its 1-inch square drive incorporates hog-ring and through-hole socket retention, helping maintain a secure connection to compatible impact sockets during operation.

This extended-reach design makes the wrench especially practical for commercial vehicle maintenance, tyre servicing and industrial equipment repairs.

Ergonomic D-Handle Design for Improved Control

The ergonomic swept-back D-handle provides excellent manoeuvrability and handling during demanding applications.

An additional auxiliary handle improves stability and control, while the responsive feather-touch trigger allows more precise operation when working with heavy-duty fasteners.

Durable Construction for Professional Environments

Built for demanding workshop and industrial conditions, the Ingersoll Rand 285B-6 features a robust steel hammer case and metal housing designed to withstand intensive professional use.

A protective rubber boot helps shield the tool from external damage, while durable internal components contribute to dependable performance in challenging environments.

Efficient Pneumatic Impact Mechanism

The rocking-dog impact mechanism combines high inertia with a relatively low blows-per-minute rate to deliver powerful impacts efficiently.

A high-efficiency six-vane air motor provides reliable pneumatic performance, making the Ingersoll Rand 285B-6 suitable for demanding applications requiring consistent impact power.

Suitable Applications

The Ingersoll Rand 285B-6 pneumatic impact wrench is suitable for a variety of professional applications, including:

• Heavy-duty automotive repair and vehicle maintenance

• Commercial truck and bus servicing

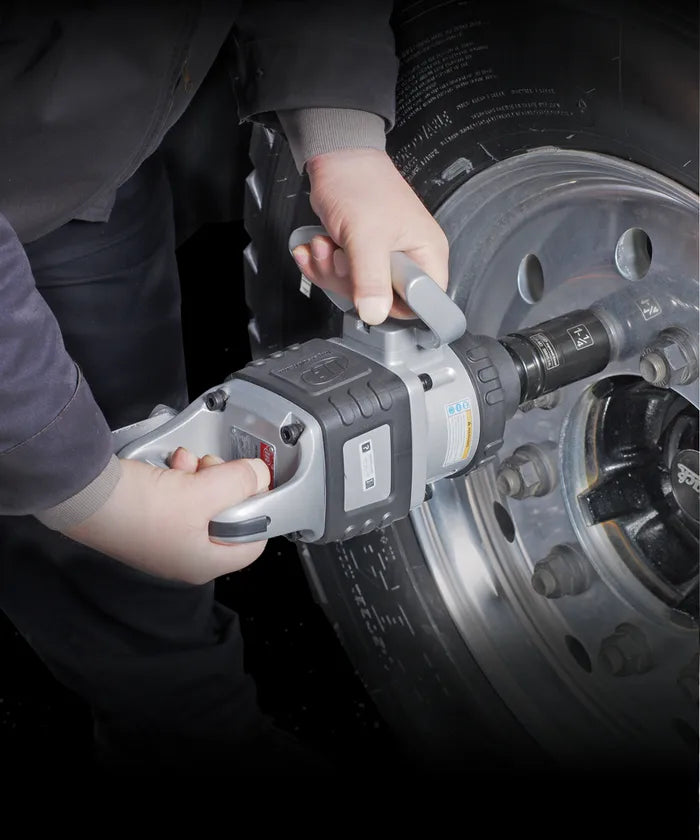

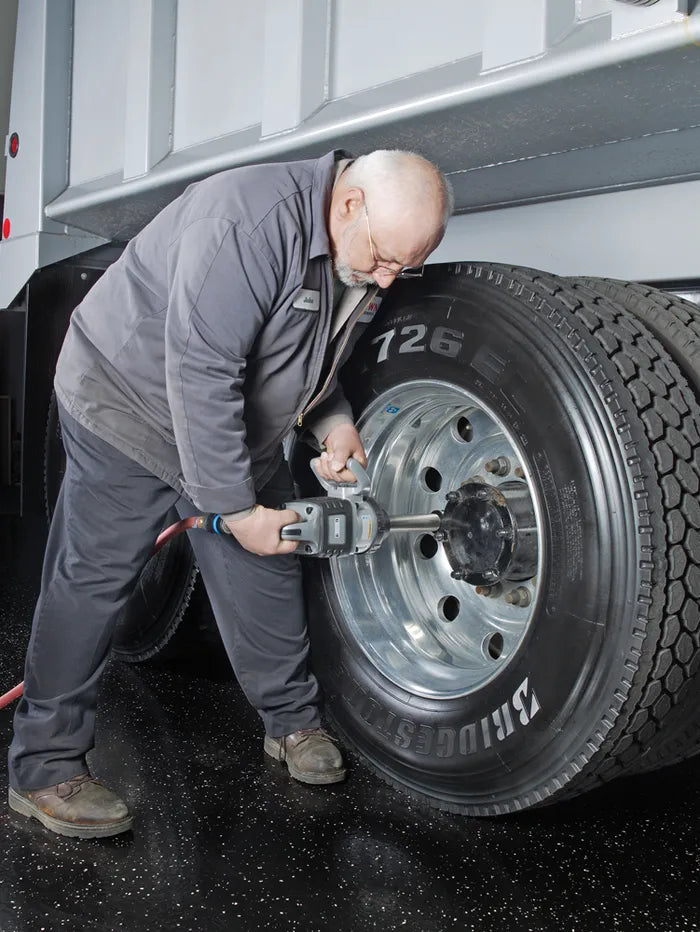

• Tyre changing and wheel maintenance

• Industrial machinery servicing and repairs

• Construction and agricultural equipment maintenance

• Loosening stubborn or difficult-to-access fasteners

• Professional workshop and mechanical maintenance operations

Ingersoll Rand 285B-6 Technical Specifications

General Specifications

Specification	Details
Manufacturer	Ingersoll Rand
Model Number	285B-6
Product Type	Heavy Duty Pneumatic Impact Wrench
Operation Mode	Pneumatic
Drive Size	1 Inch
Head Style	Square Drive
Anvil Length	6 Inches
Drive Type	Square, Hog-Ring and Through-Hole
Handle Configuration	D-Handle with Auxiliary Handle
Impact Mechanism	Rocking Dog
Power Regulator	3-Position
Operation	Forward and Reverse

Performance Specifications

Specification	Details
Maximum Torque at 6.2 Bar (90 PSI)	2000 Newton Metres
Maximum Torque at 8.3 Bar (120 PSI)	2400 Newton Metres
Blows Per Minute at 6.2 Bar	700 BPM
Air Inlet Size	1/2 Inch
Motor	6-Vane Pneumatic Motor

Dimensions and Weight

Specification	Details
Overall Length	20.4 Inches (519 mm)
Extended Anvil Length	6 Inches
Item Weight	12.61 Kilograms
Item Package Quantity	1

Construction

Specification	Details
Hammer Case	Steel
Housing	Metal
Protective Cover	Rubber Boot

Why Choose the Ingersoll Rand 285B-6 Pneumatic Impact Wrench?

The Ingersoll Rand 285B-6 combines heavy-duty torque performance, a 6-inch extended anvil and durable construction in a professional pneumatic impact wrench.

Its ergonomic D-handle configuration, responsive trigger and three-position power regulator provide excellent control, while the robust impact mechanism offers dependable performance for demanding industrial and automotive applications.

For professionals requiring a powerful 1-inch drive pneumatic impact wrench for commercial vehicle maintenance, industrial machinery or heavy-duty fastening tasks, the Ingersoll Rand 285B-6 offers an effective combination of power, accessibility and durability.
