UNION 22511 4 Lever Metal Casement Lock (PANEL LOCK)

4 Lever Metal Casement Lock (PANEL LOCK) – 22511

(commonly used on Crittall steel doors)

Lever Handles also available - Please click here

PLEASE LOOK THROUGH ALL THE IMAGES AS THERE ARE NO RETURNS ON THESE NEW OLD-STOCK DISCONTINUED LOCKS, THANK YOU

Application:

For use on metal casement doors and steel gates

Operation:

Deadbolt locked or unlocked by key from either side

Latch bolt withdrawn by lever handle

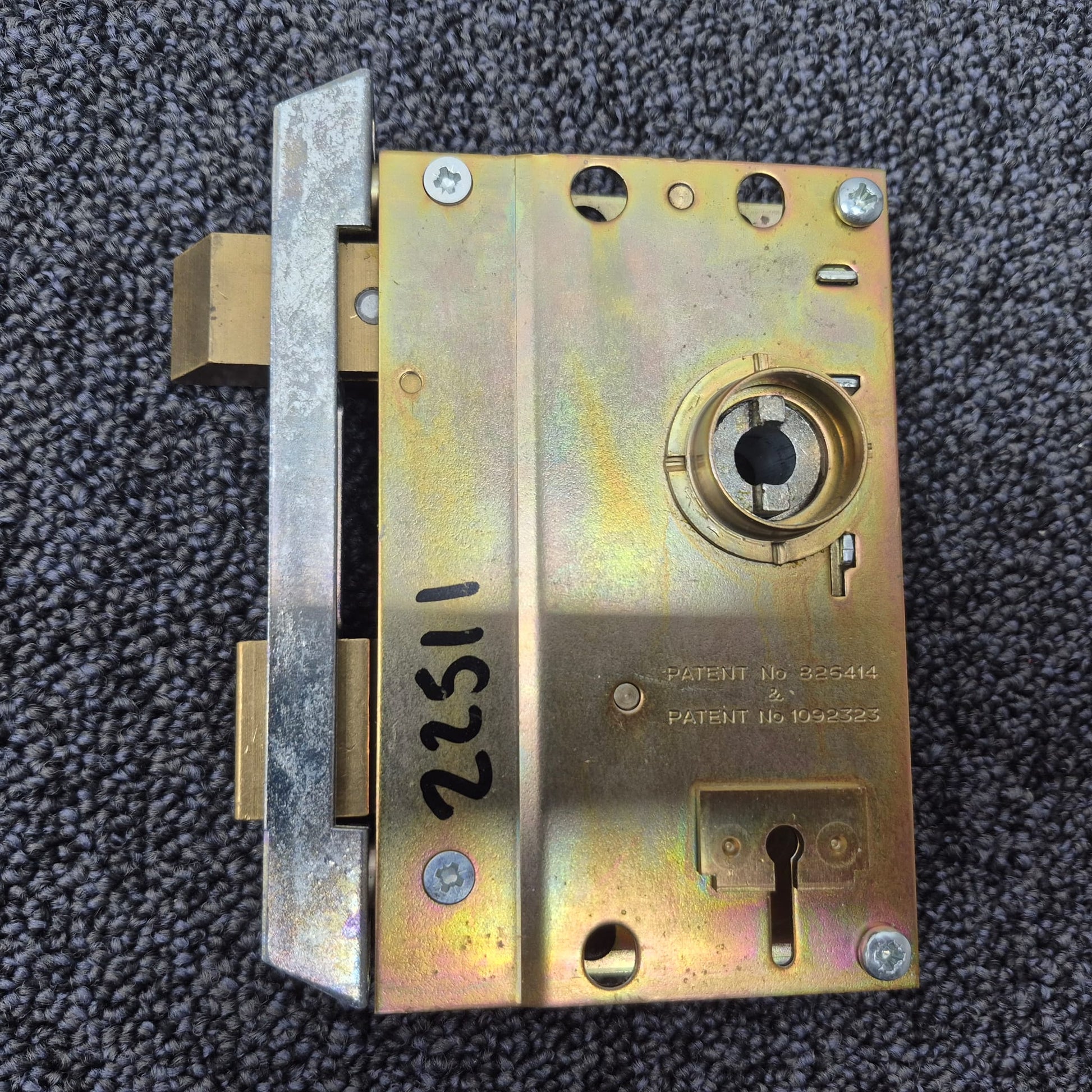

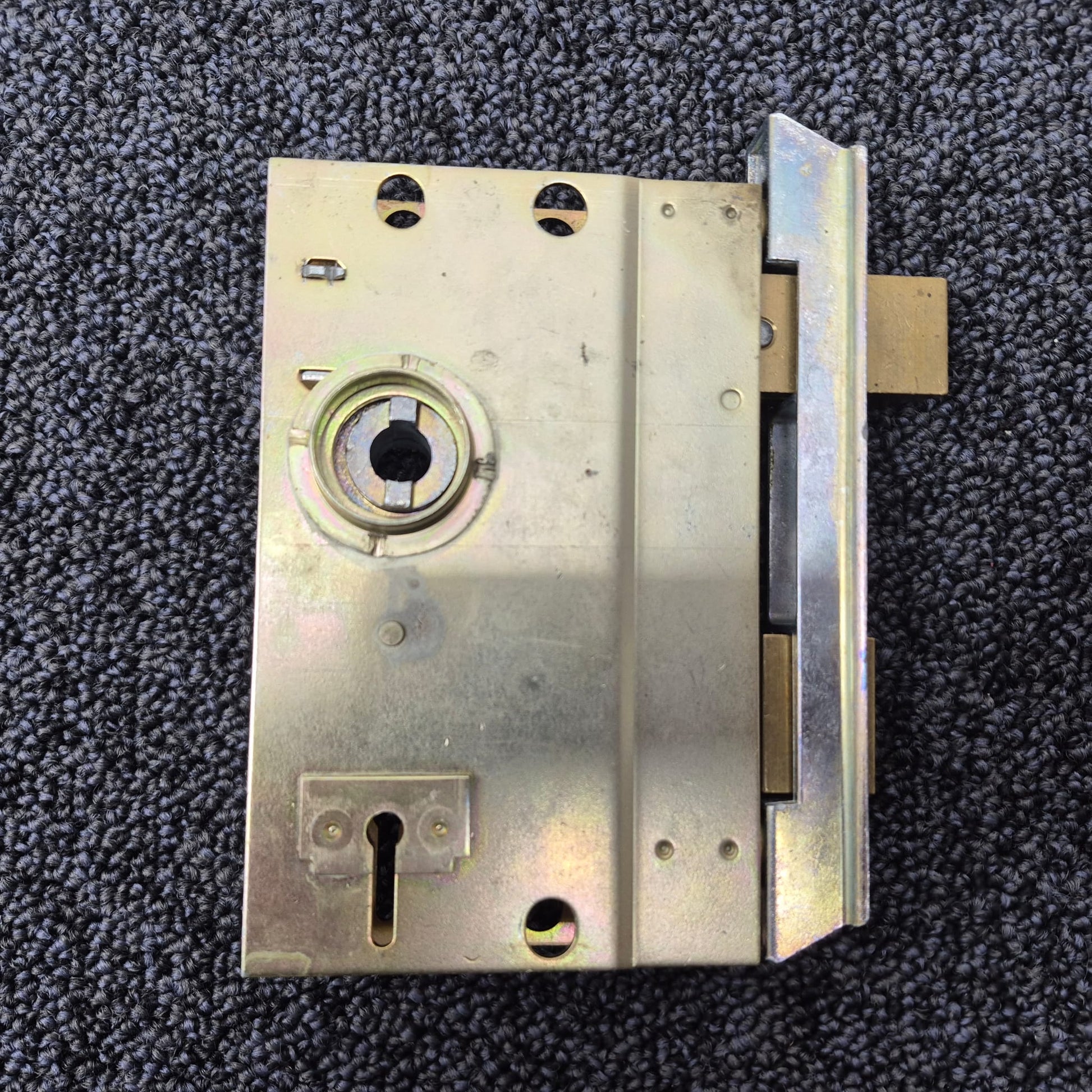

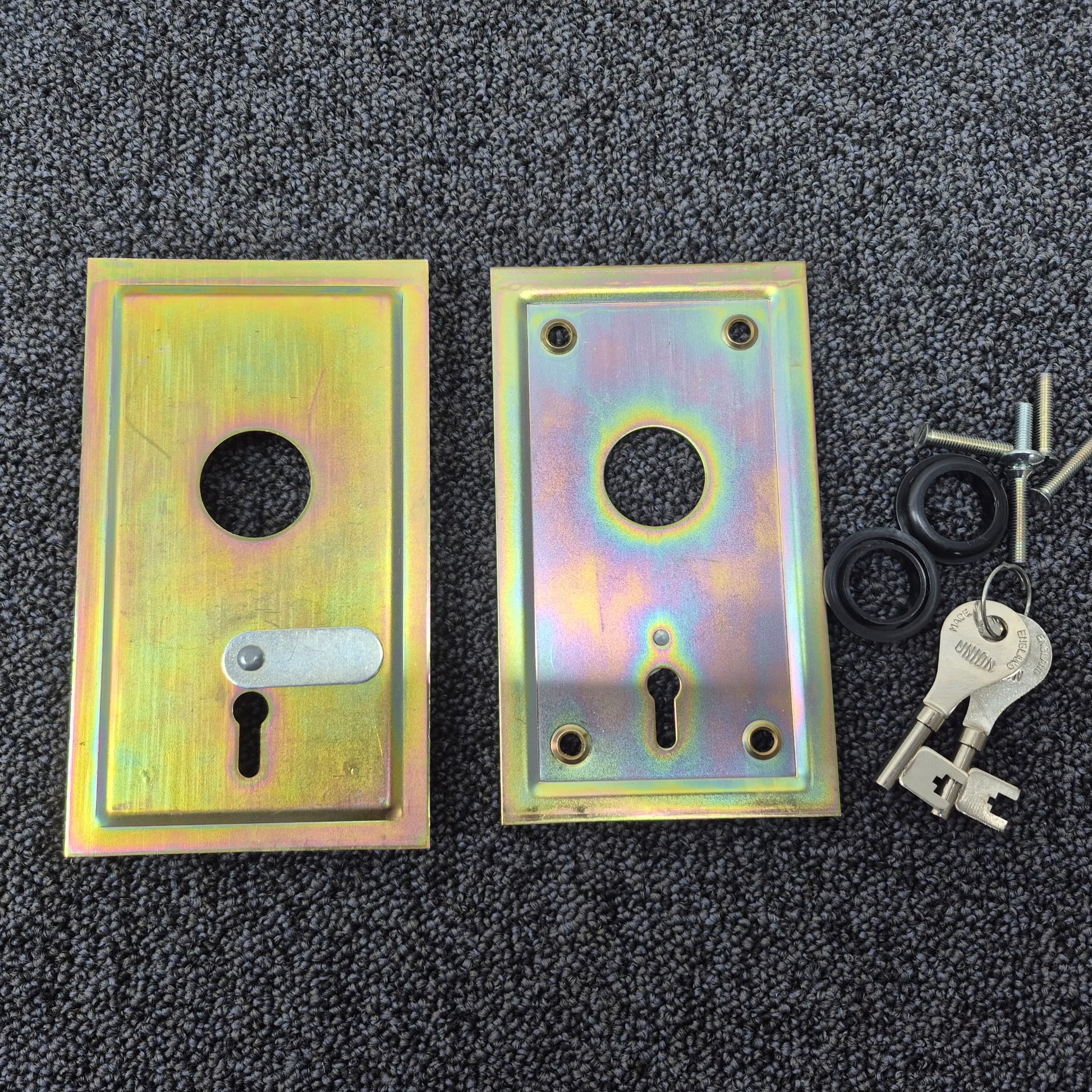

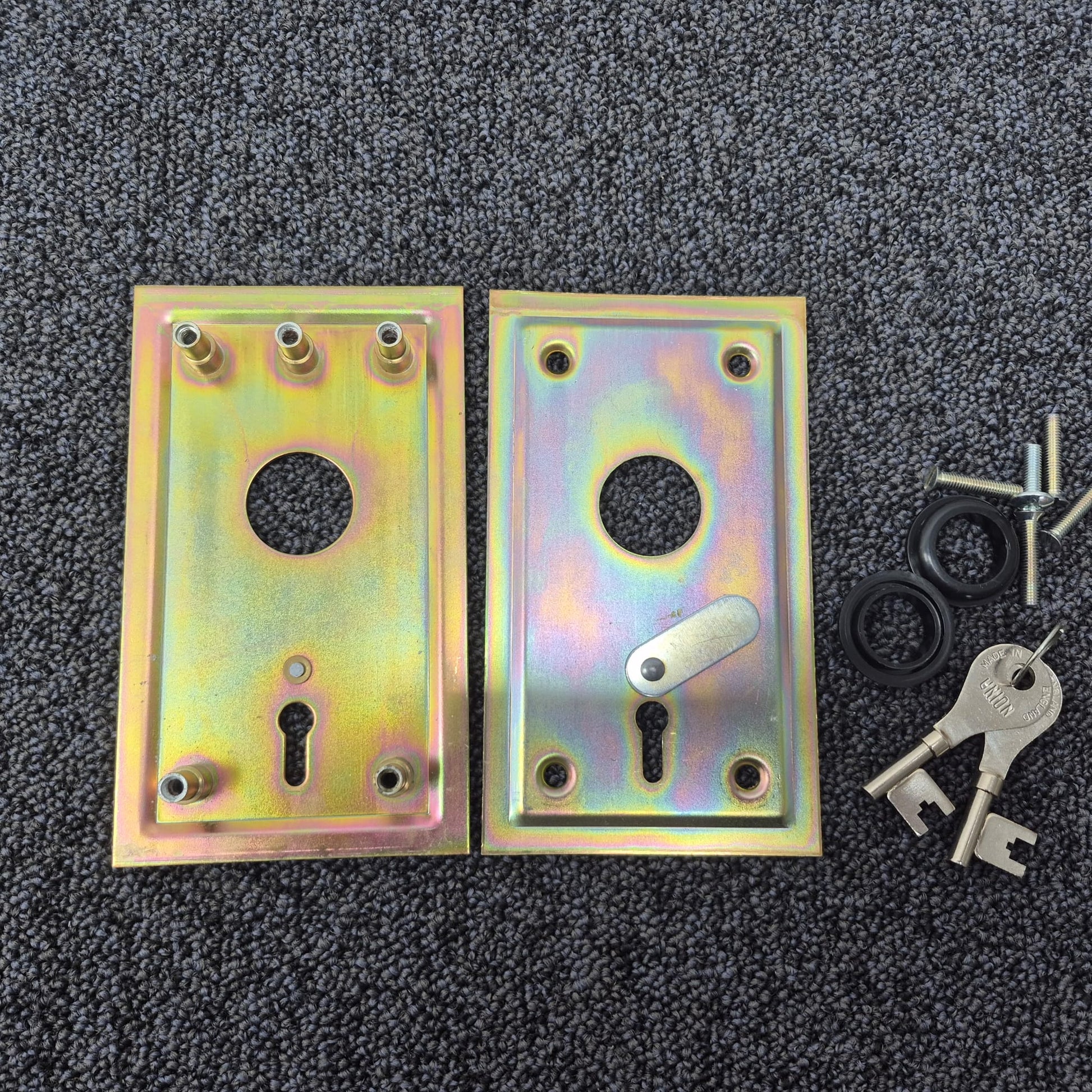

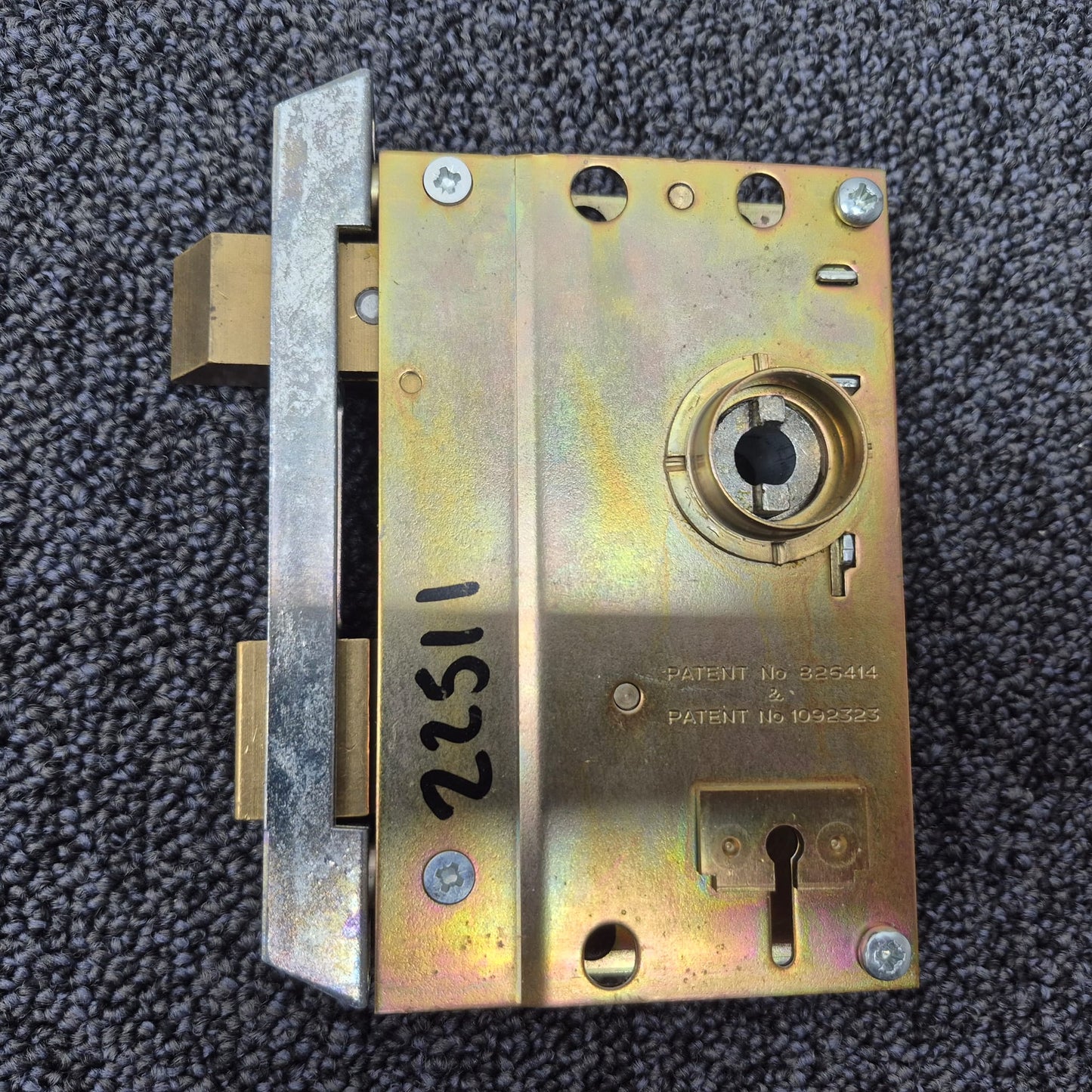

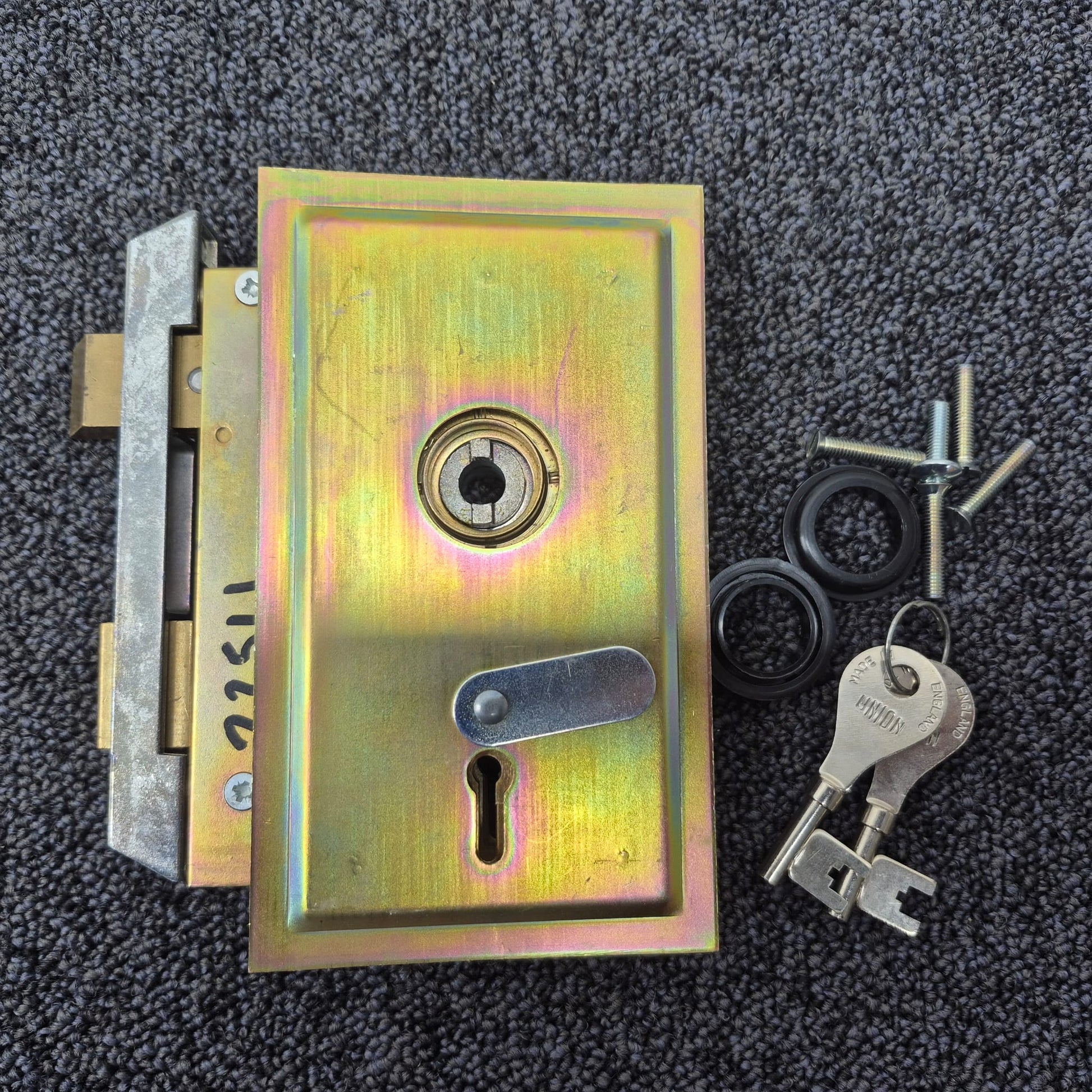

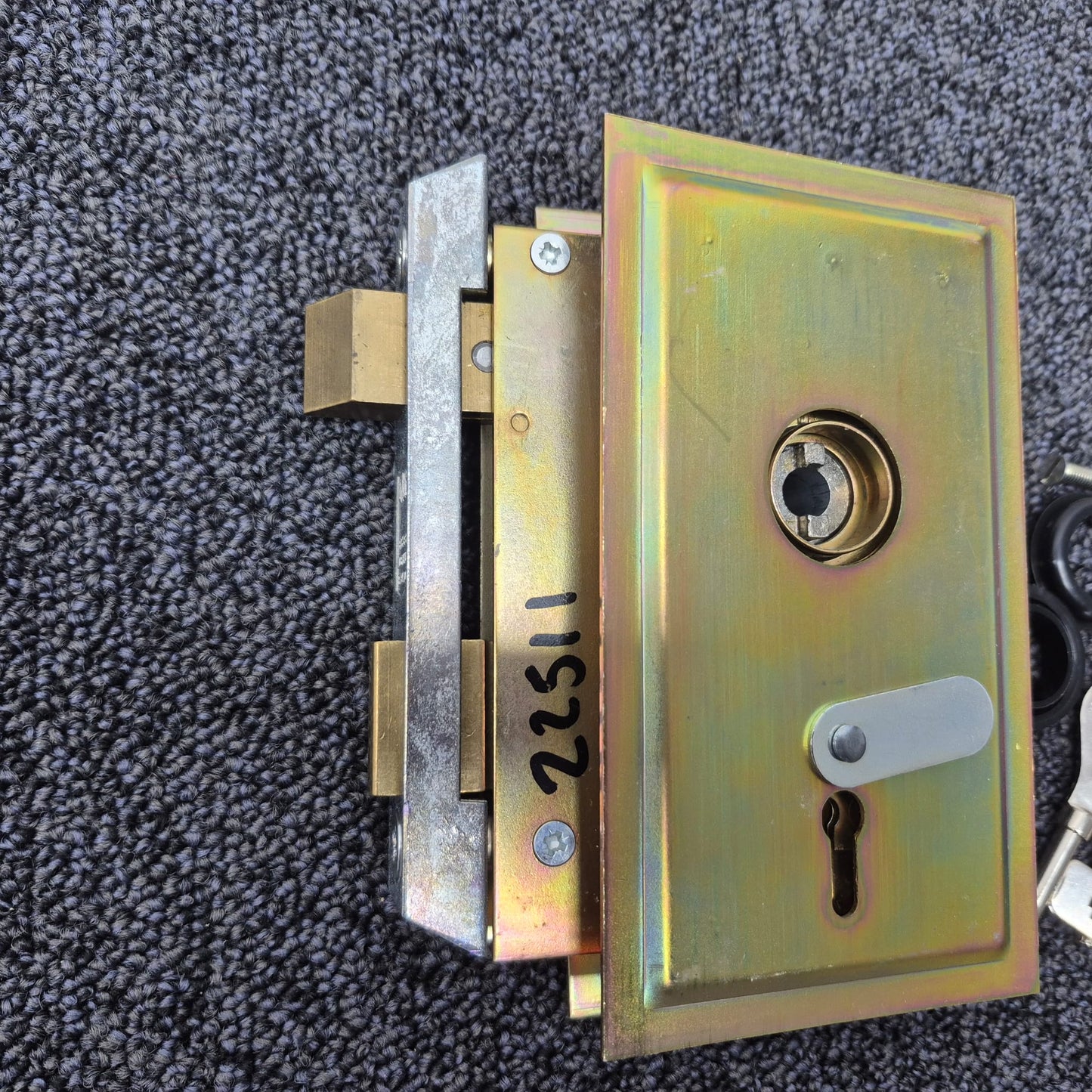

Non-reversible – look at the pictures (make sure this is the one you need as there are no returns)

Not available master keyed

Specification:

Reference

22511 – right handed

Case Size: 89mm
Backset: 78mm
Case: Steel
Forend: Zinc
Striking Plate: Finished to match forend
Deadbolt: Brass
Latch Bolt: Brass – non reversible
Follower: Round
Keying Groups: 2 steel keys
Key Blank Number: KB441
Keying: 150 standard differs (numbers from BGA101 to BGA250)

Features:

Suitable for metal casement doors and steel gates

Finishes:

ZP – Zinc Plated

Standards:

Made in the UK
