4 Lever Metal Casement Lock (PANEL LOCK) – 22931
(commonly used on Crittall steel doors)
Lever Handles also available - Please click here

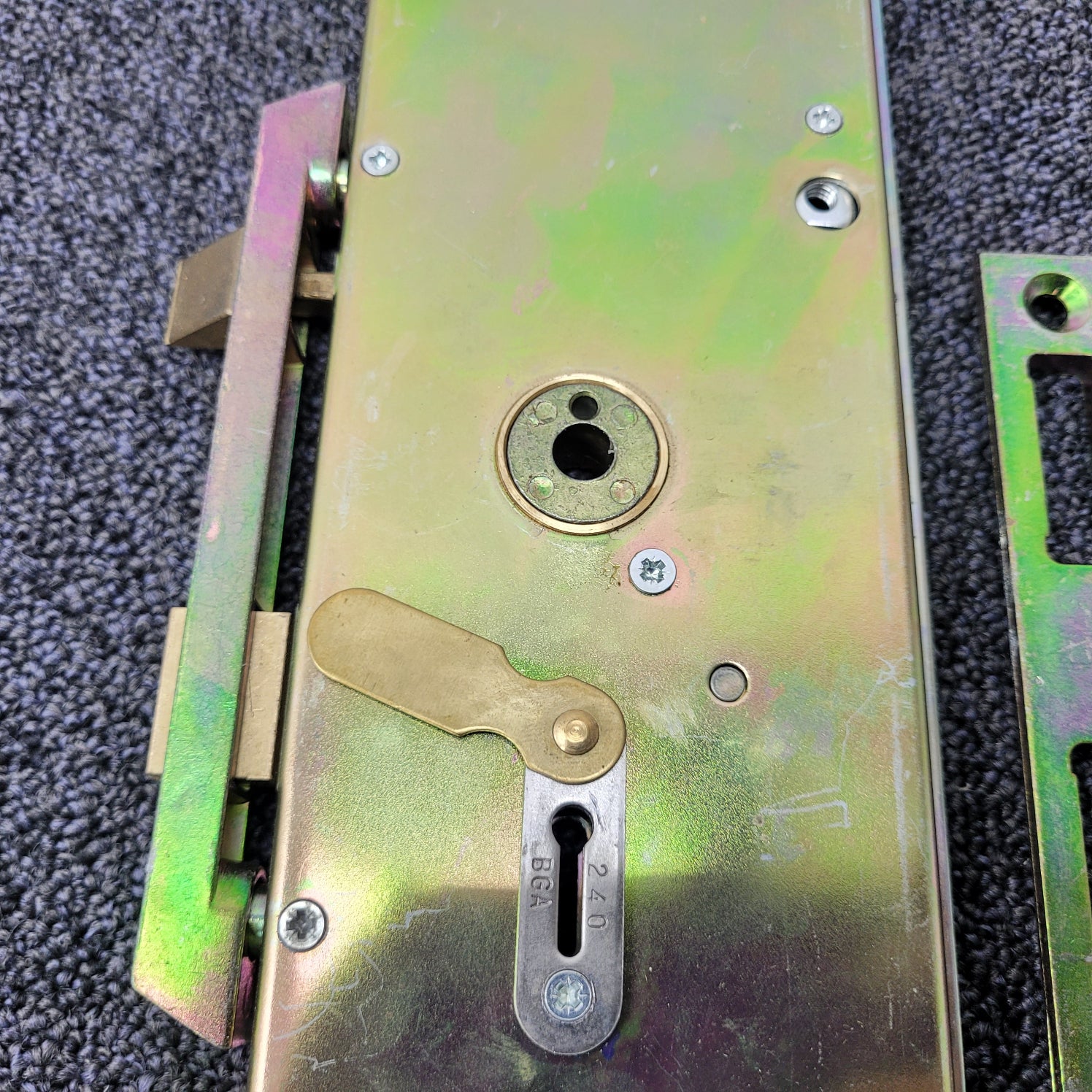

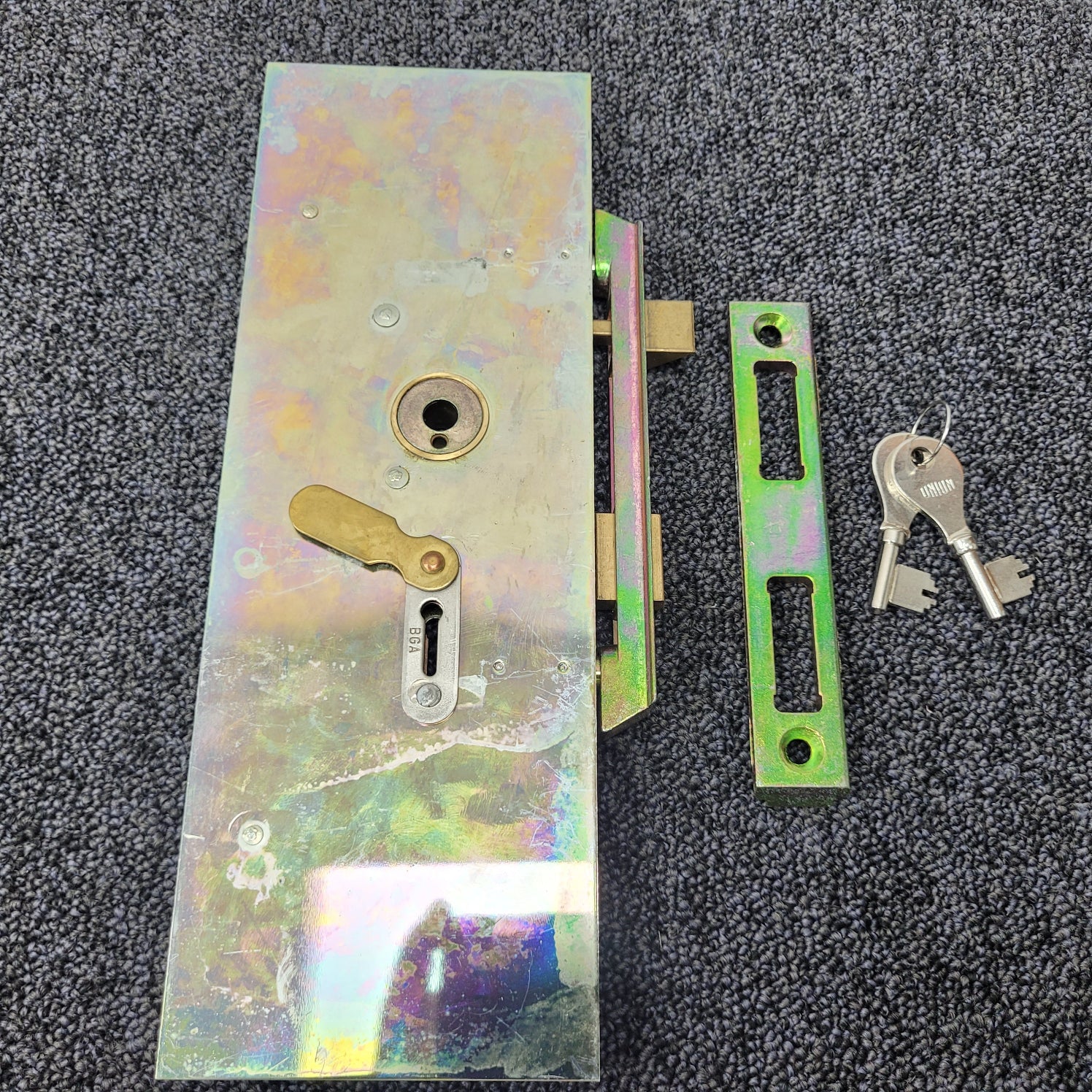

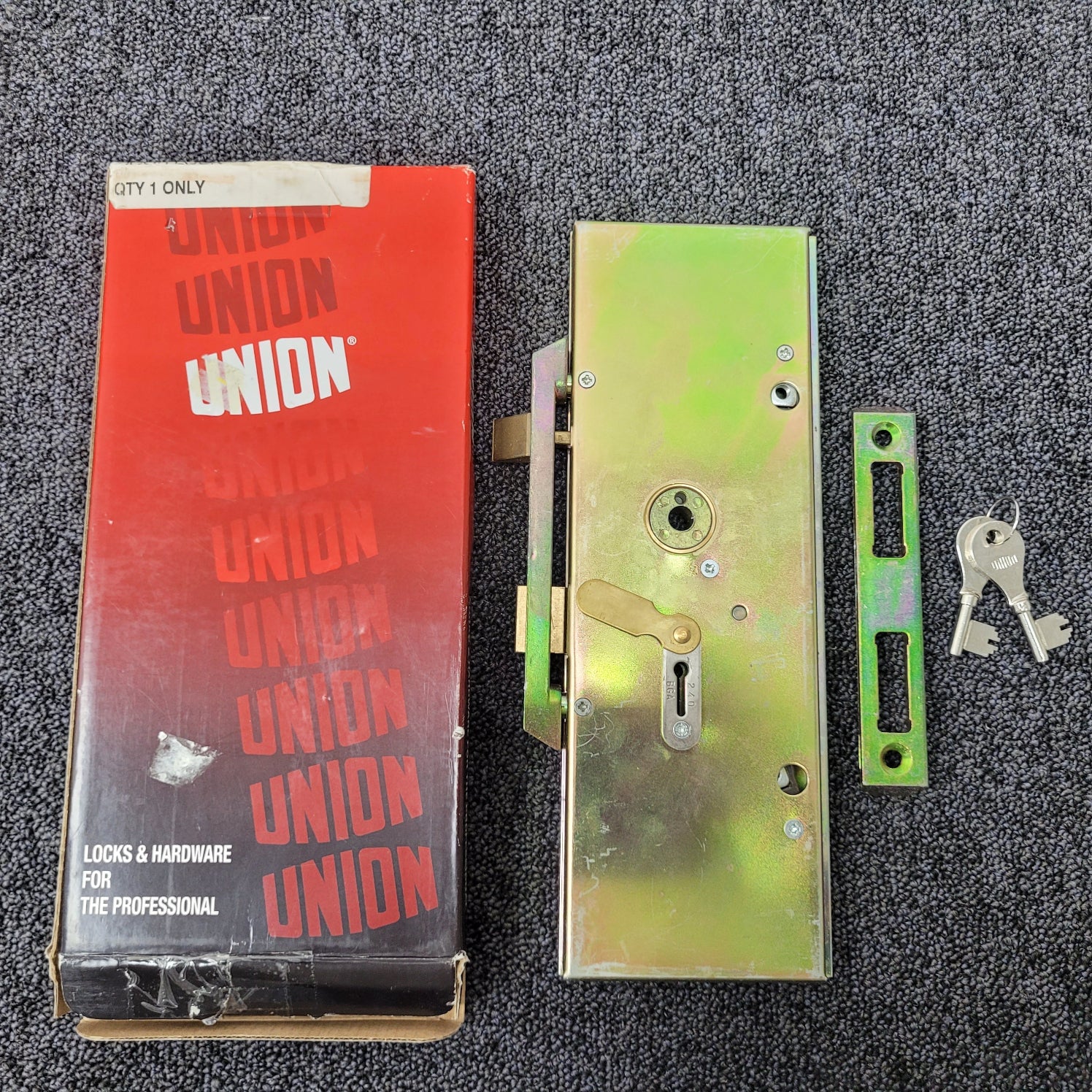

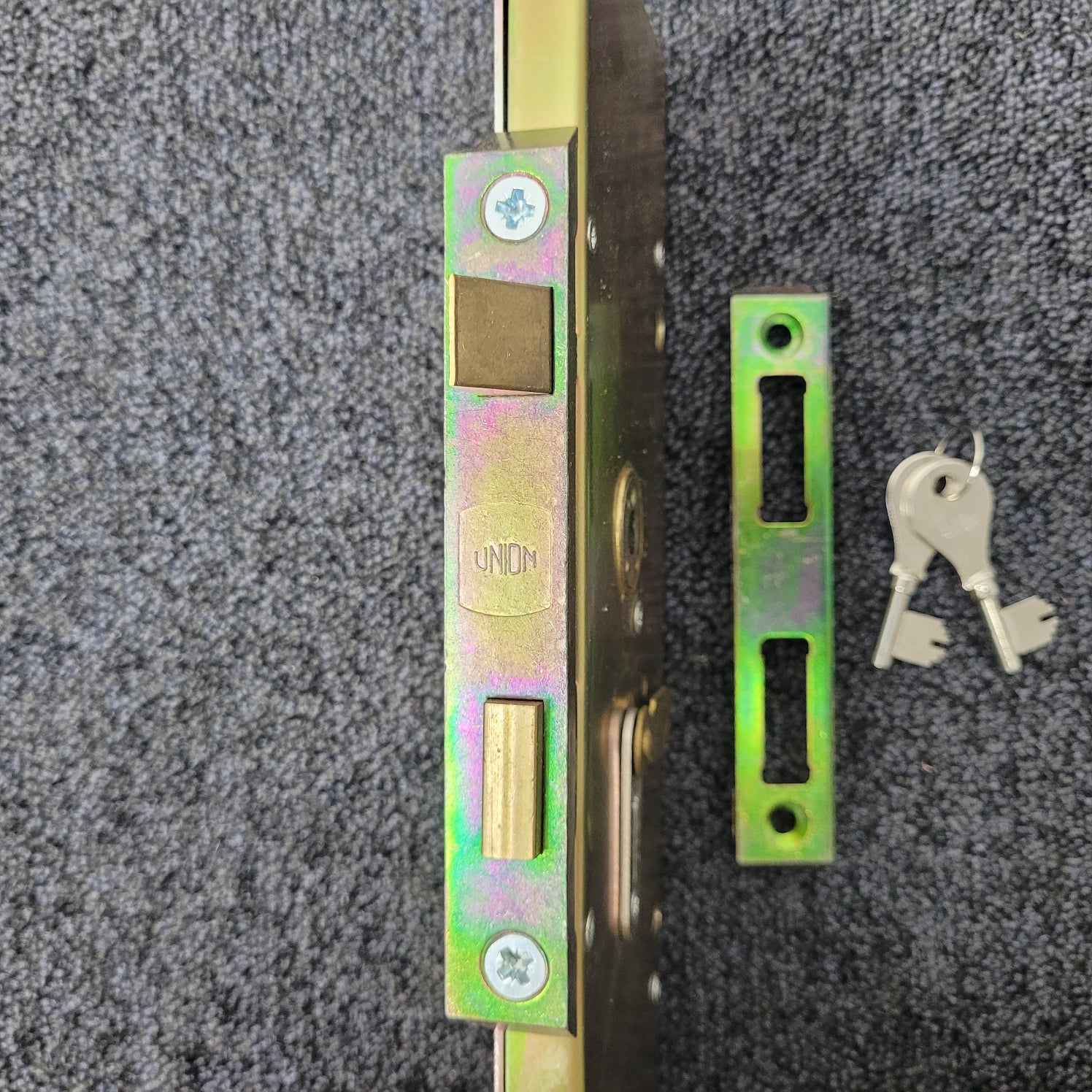

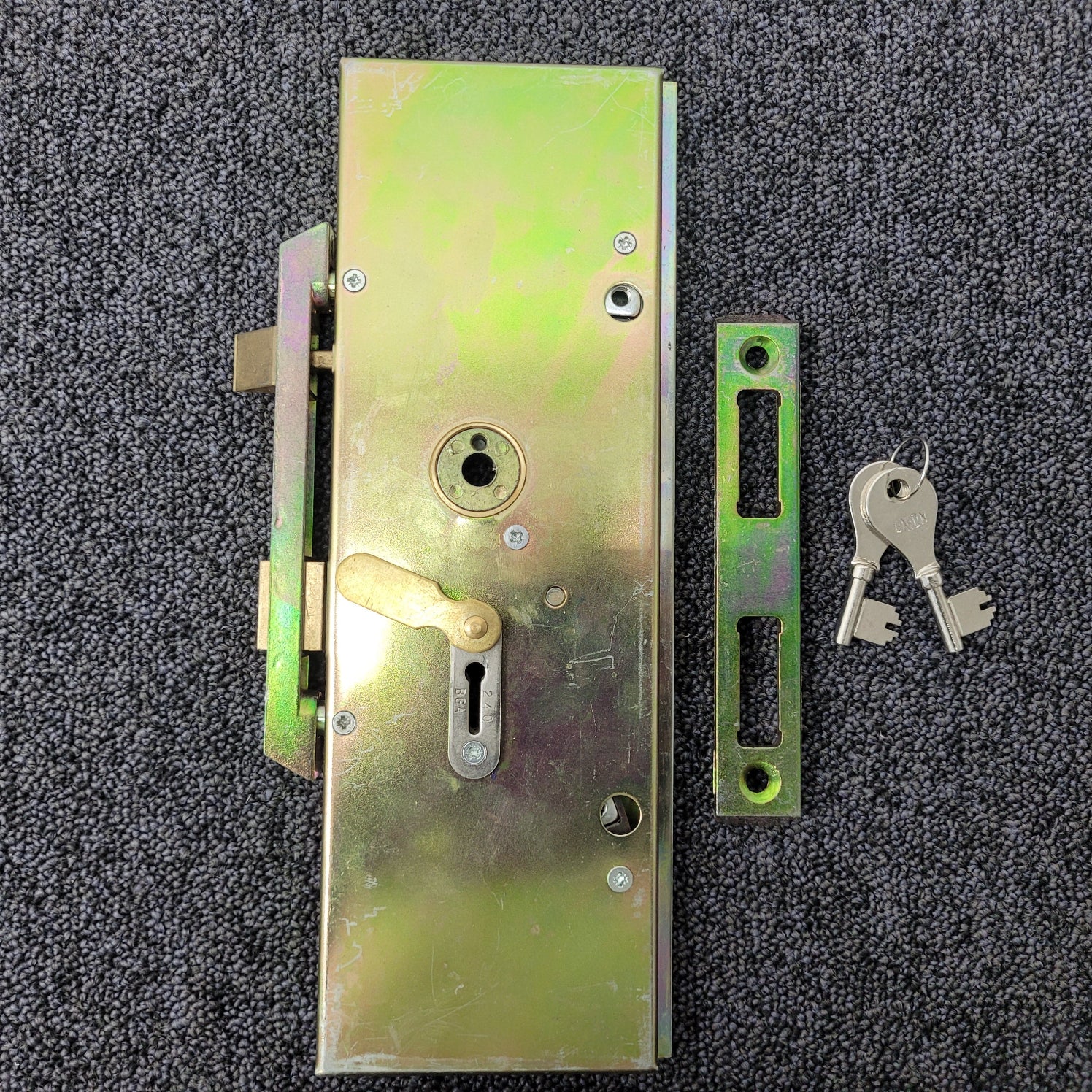

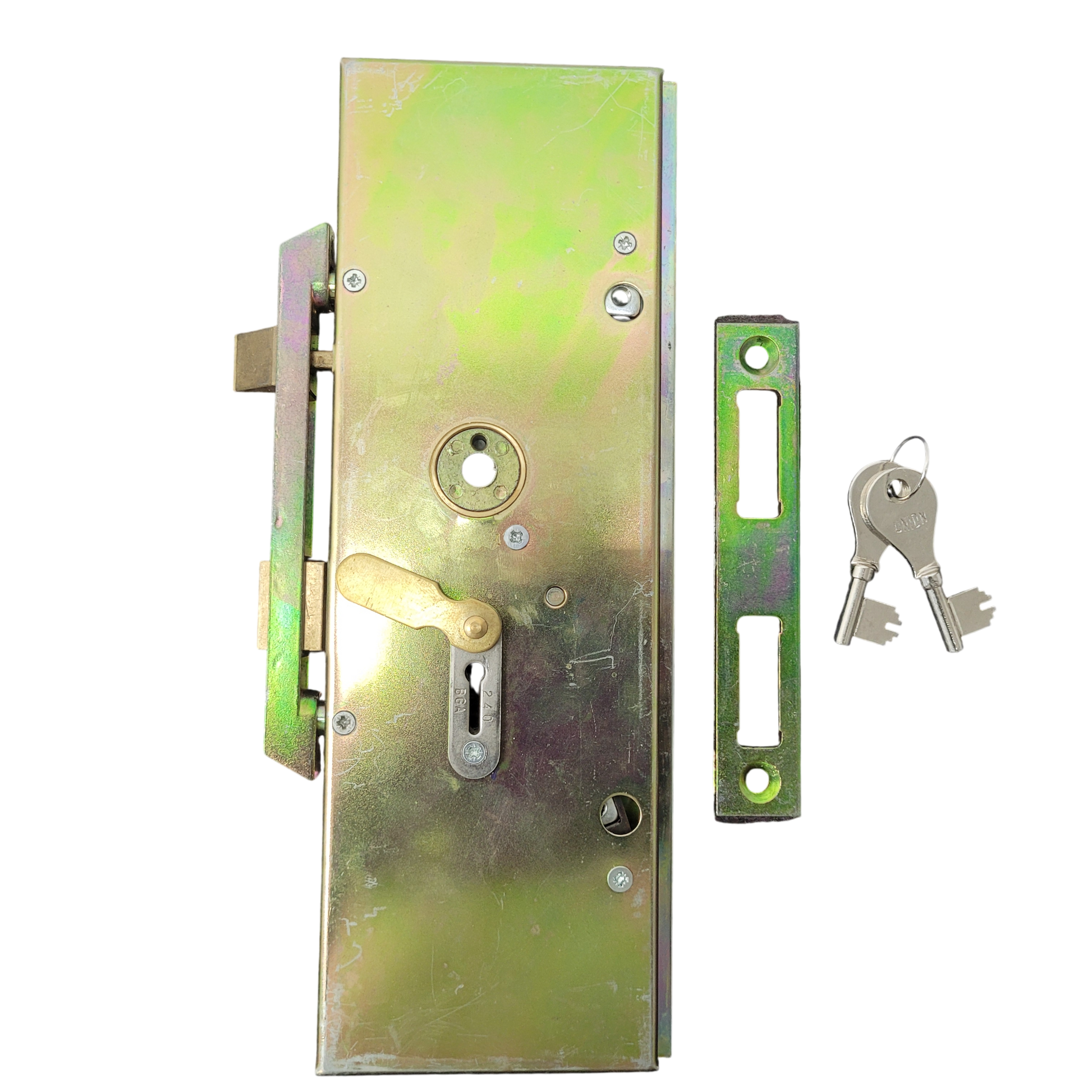

PLEASE LOOK THROUGH ALL THE IMAGES AS THERE ARE NO RETURNS ON THESE NEW OLD-STOCK DISCONTINUED LOCKS, THANK YOU
Application:
For use on metal casement doors and steel gates
Operation:
Deadbolt locked or unlocked by key from either side
Latch bolt withdrawn by lever handle
Non-reversible – look at the pictures (make sure this is the one you need as there are no returns)
Not available master keyed
Specification:
Reference
22931 – right handed opening out
Case Size: 102mm
Backset: 62mm
Case: Steel
Forend: Zinc
Striking Plate: Finished to match forend
Deadbolt: Brass
Latch Bolt: Brass
Follower: Round
Keying Groups: 2 steel keys
Cylinder Type: n/a
Key Blank Number: KB441
Keying: 150 standard differs (numbers from BGA101 to BGA250)
Features:
Suitable for metal casement doors and steel gates
Finishes:
Case: ZP – Zinc Plated
Escutcheon: IB – Imitation Bronze
