UNION L2224 Euro Sashcase

UNION L2224 Euro Sashcase

£69.00
£69.00
Sale Sold out
Taxes included.

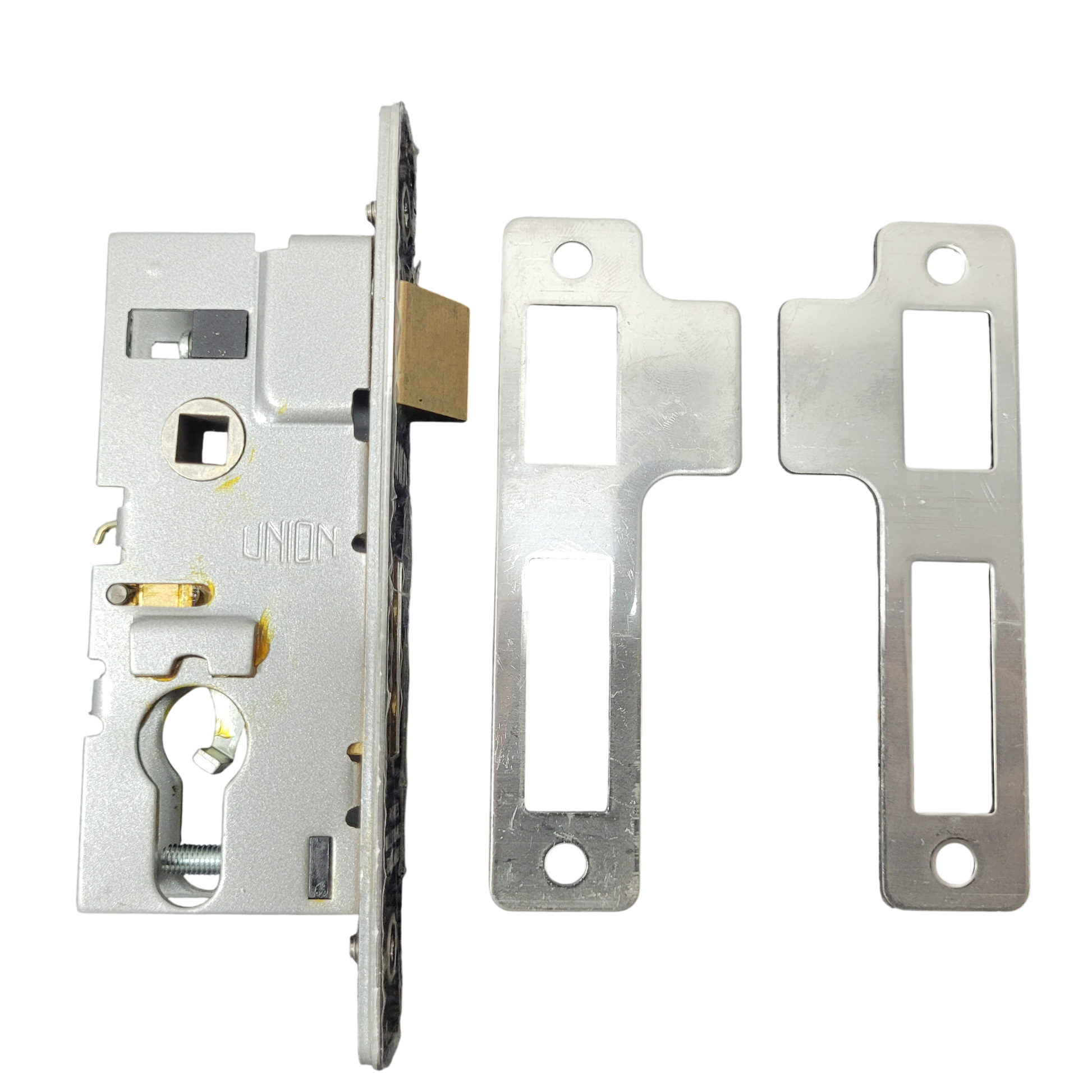

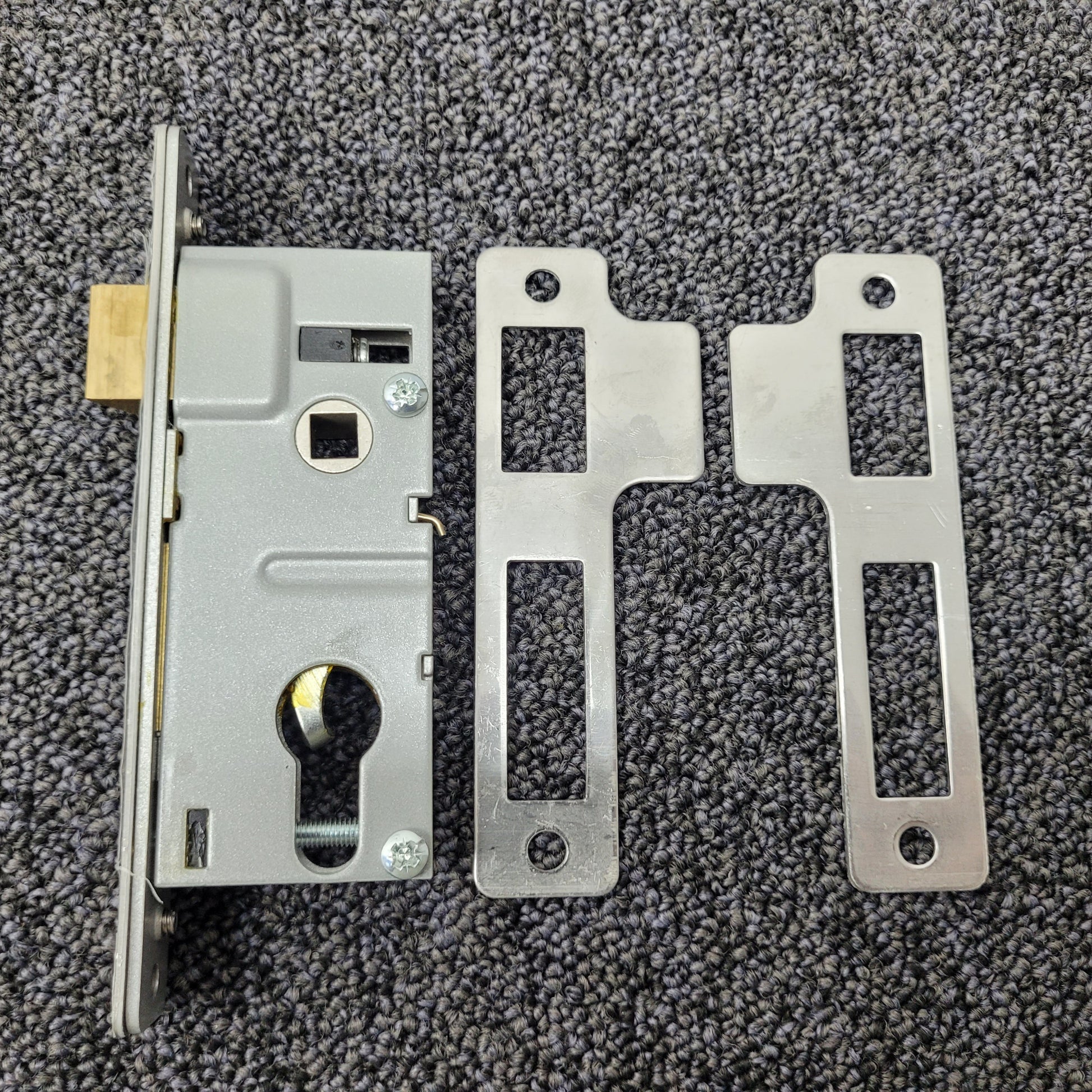

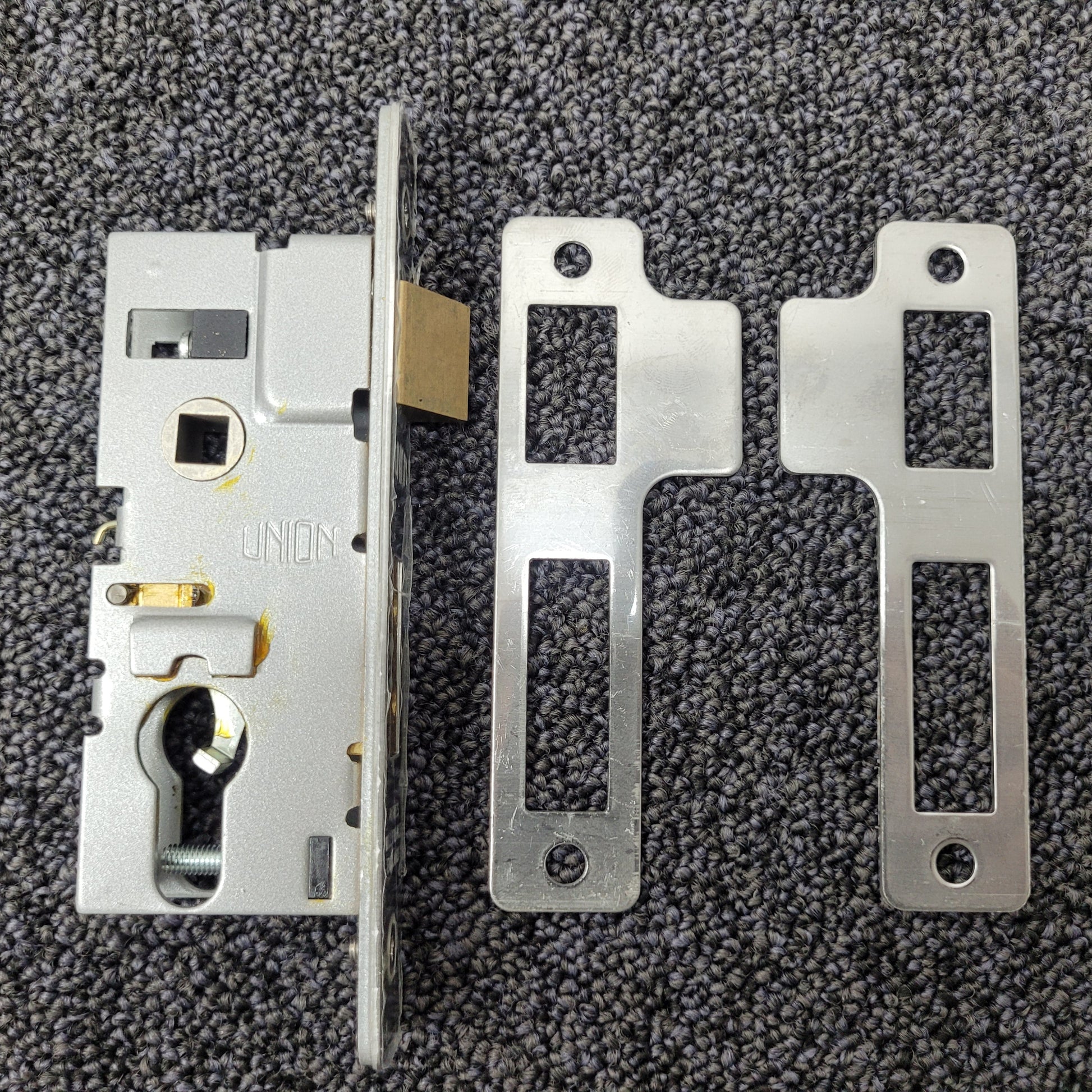

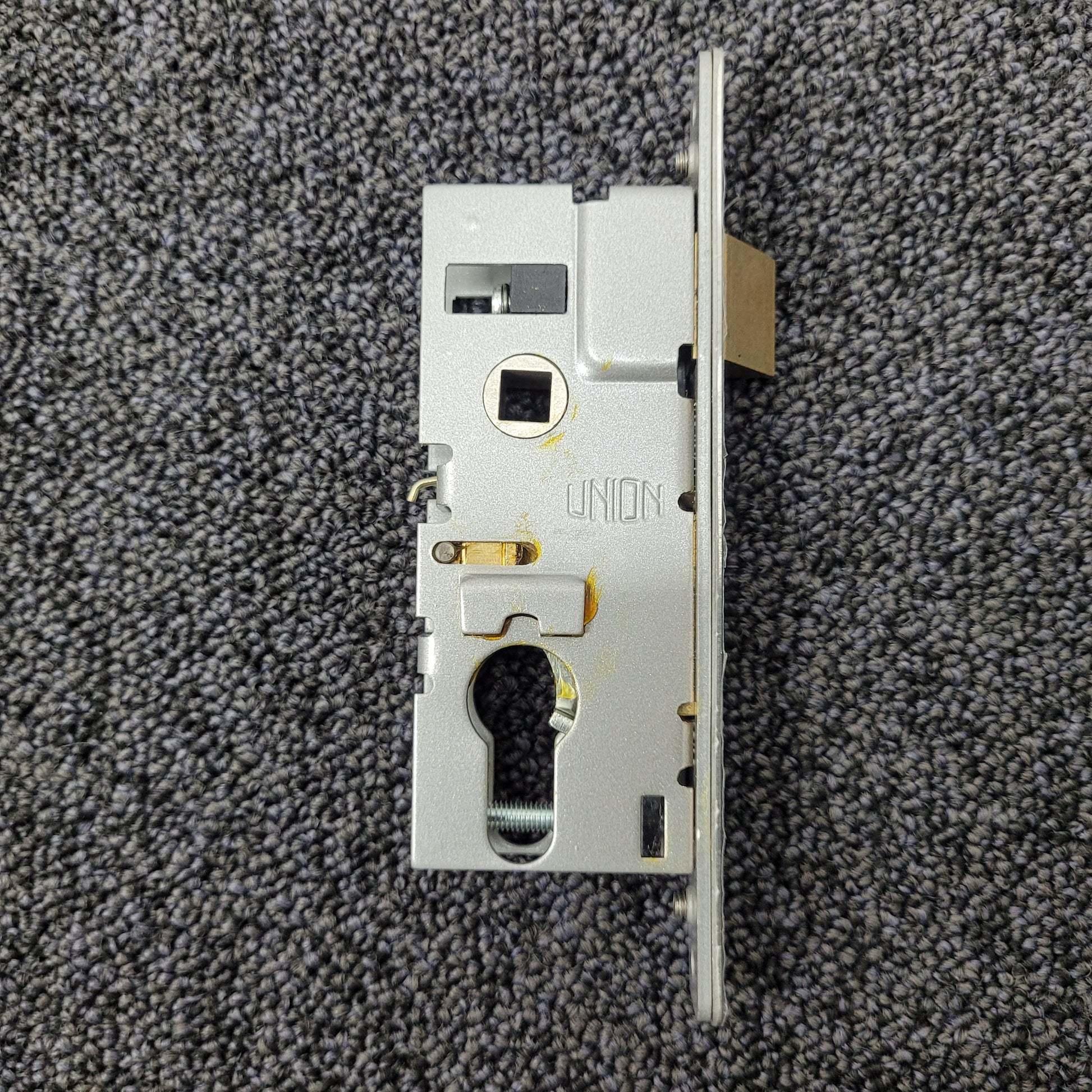

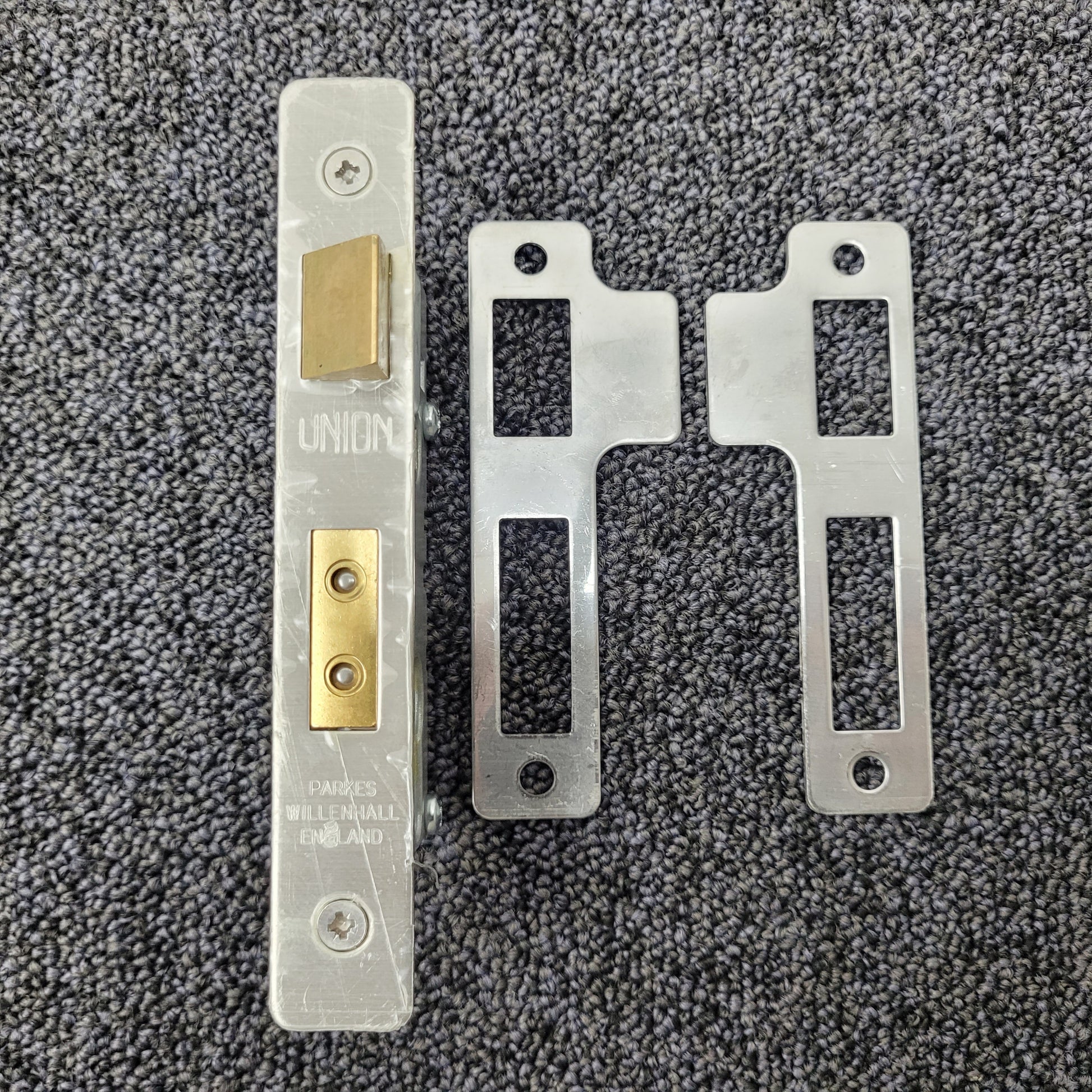

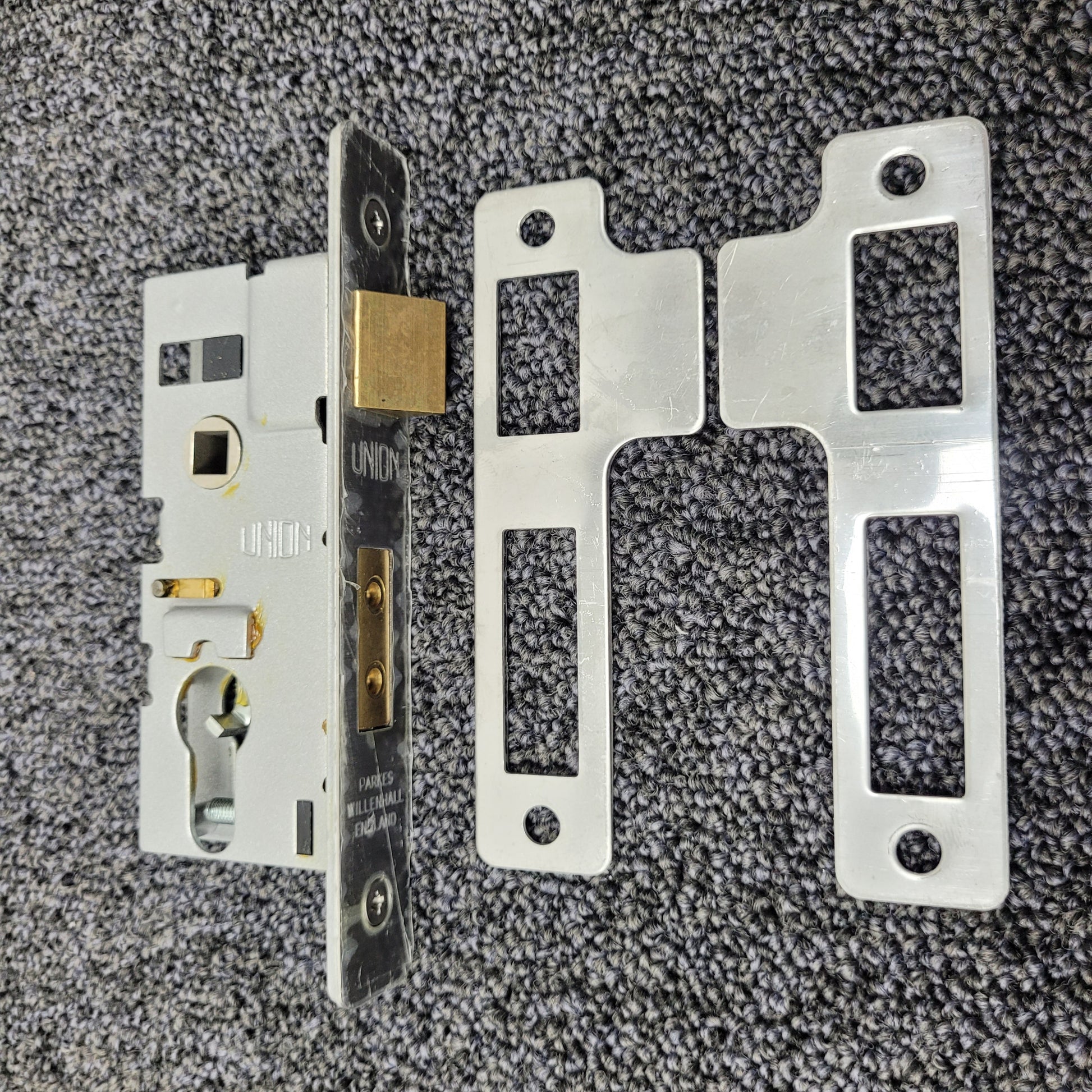

The Union L2224 is a euro sashcase with 30.5mm backset suitable for use on metal doors. It has 48mm centres and 50mm case depth.

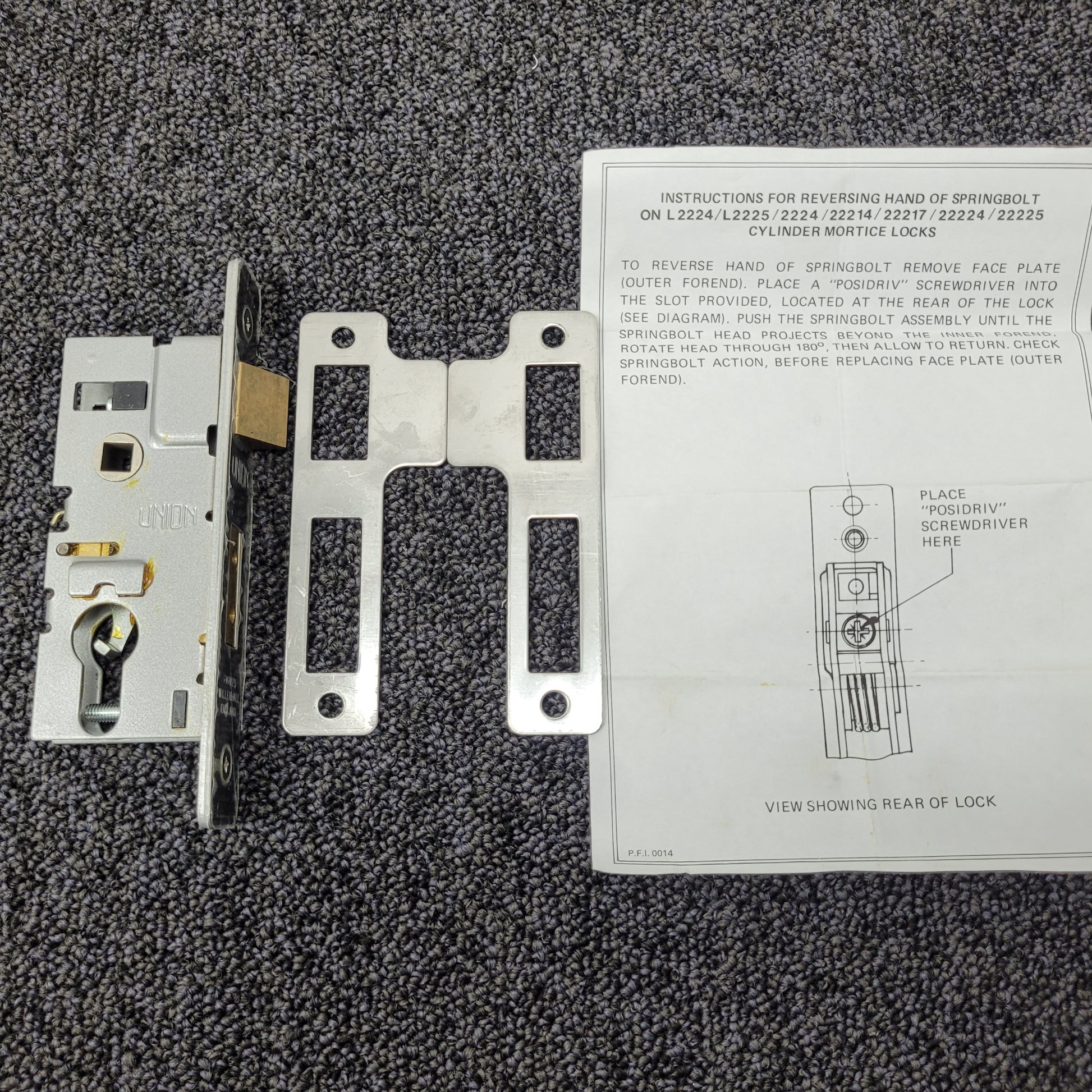

PLEASE LOOK THROUGH ALL THE IMAGES AS THERE ARE NO RETURNS ON THESE NEW OLD-STOCK LOCKS, THANK YOU

Features

  • C - One full turn of the key to lock and one full turn of the key then push down on the lever to unlock, latch bolt can also be withdrawn by key.
  • Euro Profile Sash Case
  • Reversible latch bolt
  • Latch & Deadbolt
  • Suitable for use with unsprung lever handles
  • Suitable for metal doors
  • Includes right & left strike plates
Backset 30.5mm
Barcode 5010609112085
Bolt Throw 11.5mm
Brand Union
Case Depth 50mm
Case Height 108mm
Case Width 47mm
Centre Case Latch & Deadbolt
Centres 48mm
Faceplate Width 22mm
Finish Satin Chrome
Manufacturer Reference L2224
Mechanism Euro Cylinder
Operation C - One full turn of the key to lock and one full turn of the key then push down on the lever to unlock, latch bolt can also be withdrawn by key.
Pack Quantity 1
Packaging Bagged
Spindle Single
Weight 350g
